Polyga Vision V1

Polyga’s Vision V1 is a high resolution, ultra accurate, high-speed 3D camera for industrial computer vision applications. The V1 is packaged in a rugged enclosure that is ready for integration into your 3D vision application.

Buy Now US $7,999*

Product Description

Type: High resolution 3D Vision Camera
Dimension (mm): 58 x 270 x 160
Software: Flexscan3D or SB SDK (C/C++) for 3D capturing and post-processing

Technical Specifications

Field of view (mm):Area or volume the scanner can “see” at one time 333 x 230 – 428 x 330 mm
Point-to-point distance (mm):Distance between two points in a 3D model 0.6mm or better
Accuracy: Closeness of a 3D measurement to the true value80 micron

Polyga Vision V1 Series high speed high resolution 3D Camera featured image

Polyga Vision V1 Series high speed high resolution 3D Camera mobile

Captures every detail

Ultra high resolution 3D point clouds or meshes. The V1 delivers industry leading accuracy and and resolution using our high speed structured light technology. With a depth acuracy of 80 microns and point spacing of 0.6 mm the V1 lets you see and measure the world like never before.

Ready for Automation

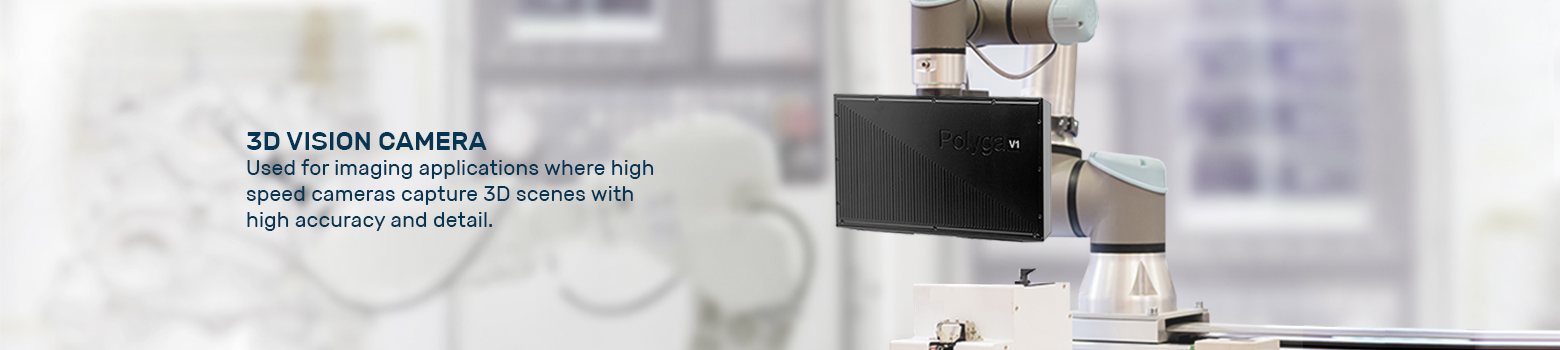

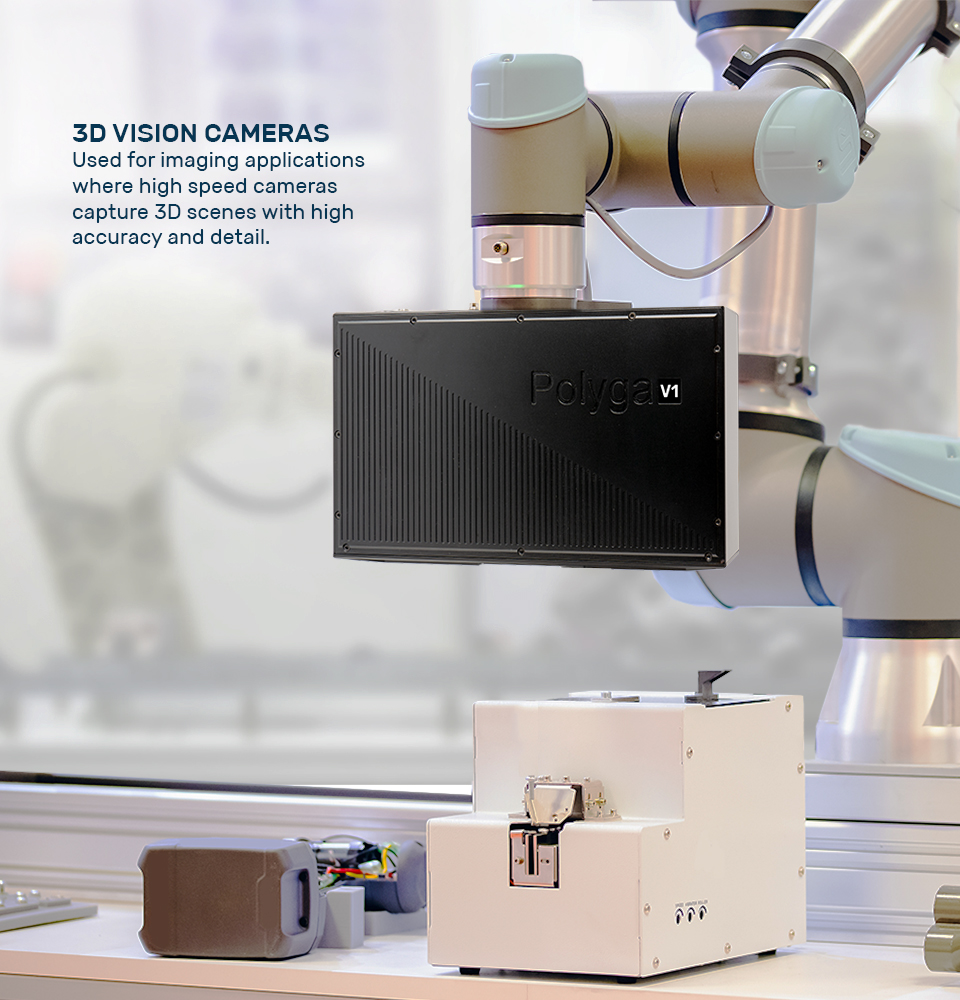

Designed for industry, the Vision V1 can be easily mounted onto robotic arms and assembly lines. It’s ready for automated applications anytime with plug-and-play connectivity. The sensor’s compact size allows it to be integrated anywhere.

Factory Calibrated

High quality industrial calibration methods for the most accurate results.

Accuracy

Provides up to 4.5 million points every second with an accuracy of up to 80 microns

Color

Captures high quality texture data for critical vision applications.

Easy Integration

Connect to your computer easily over USB 3.0.

Ready to use

Comes with FlexScan3D(GUI) and a C/C++ SDK.

High-Speed Camera

Captures high quality data with framerate of 15 FPS.

Polyga’s SB SDK is a powerful 3D C/C++ software library for acquiring 3D scan data at high speeds and in real time. Directly transfer meshes or point clouds into your application using our high performance interface.

Professional and Accurate Results

Turn scan data into high-quality point clouds. The Polyga V1 captures exceptional 3D image quality for your 3d models and surface inspection applications.

Captures accurate point clouds in motion

The Vision V1 captures high-resolution, high-accuracy 3D images of real world objects in motion. Acquire point clouds or meshes directly to your application in real time.
